The Real Scale of Strength: Automating Heavy Machinery with the LINACT-G2

The Real Scale of Strength: LINACT-G2

Engineered for earthmoving hood lifts & heavy industrial equipment.

In the mining and agricultural sectors, machinery downtime is measured in thousands of Rands per hour. When it is time for routine maintenance or critical repairs on a heavy earthmover or a large-scale farming implement, accessing the engine bay needs to be safe, seamless, and reliable.

Lifting massive, armor-plated mining truck hoods or heavy tractor cowlings requires linear motion solutions that go far beyond standard specifications. Enter the LINACT-G2. Engineered specifically for heavy industrial equipment, it delivers the real scale of strength required for extreme environments.

Power Meets Unyielding Durability

The LINACT-G2 isn't just about moving a load; it is about moving a massive load reliably under the worst possible conditions. Whether dealing with corrosive mining dust or heavy agricultural mud, the LINACT-G2 range is built to perform.

• Unrivaled Lifting Force: The LINACT-G2 series is capable of delivering maximum dynamic forces up to 12,000N.
• Advanced Environmental Protection: Heavy machinery lives outside. The LINACT-G2 is available with up to an IP66 weather protection rating, shielding the internal components from heavy dust ingress and water.
• Versatile Power Options: To integrate seamlessly into various heavy vehicle electrical systems, the LINACT-G2 offers 12V, 24V, 36V, and 48Vdc options.

Available From Stock: The 10,000N Twins

We currently hold two exceptionally popular 24Vdc LINACT-G2 configurations in stock, both delivering a massive 10,000N (1,000Kg) of force at a full load speed of 7mm/s. Both feature a 25% duty cycle, fixed limit switches, and an IP 66 rating.

While their stroke lengths are nearly identical, they are engineered for different machine geometries:

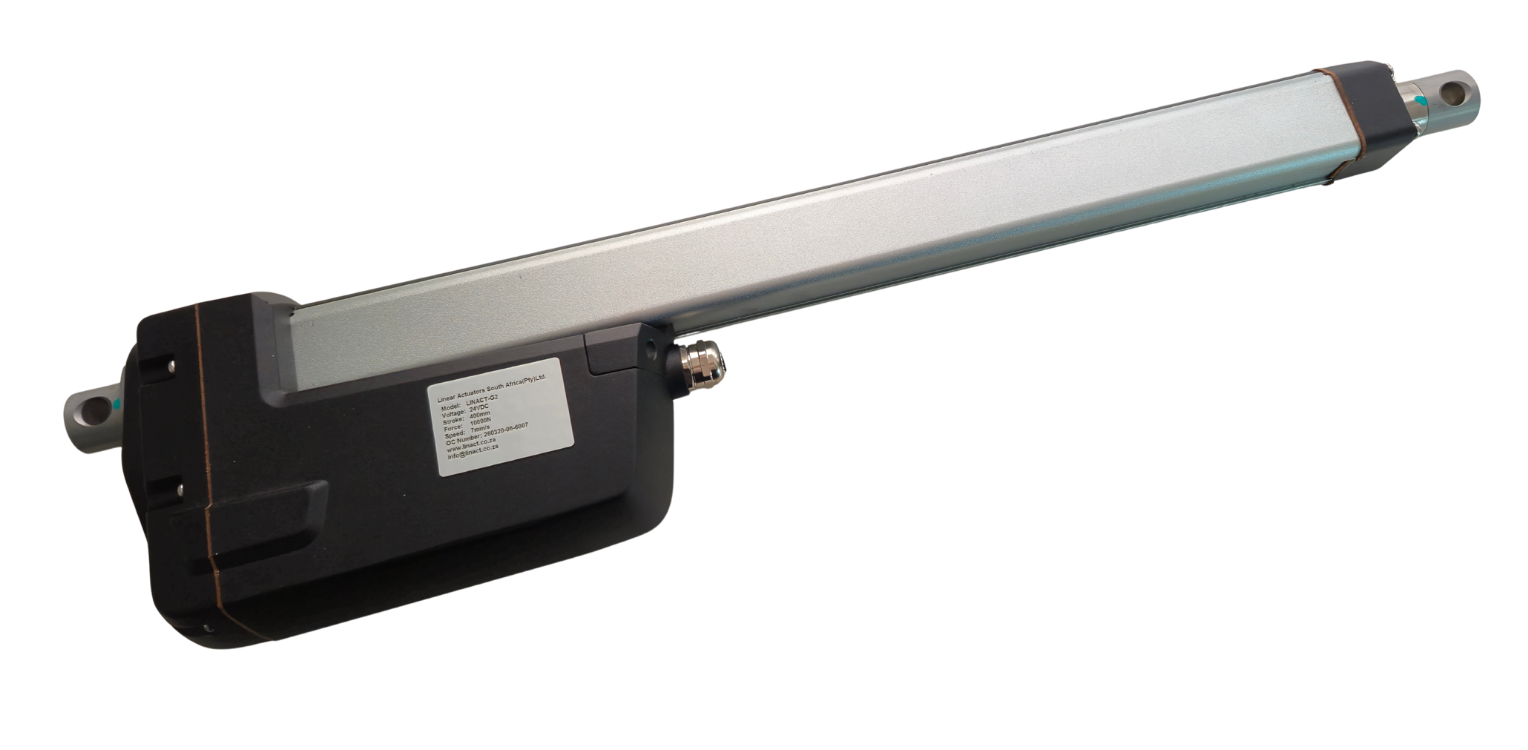

The 400mm Option:
Stroke Length: 400mm
Retracted Length: 650mm
Fully Extended Length: 1050mm

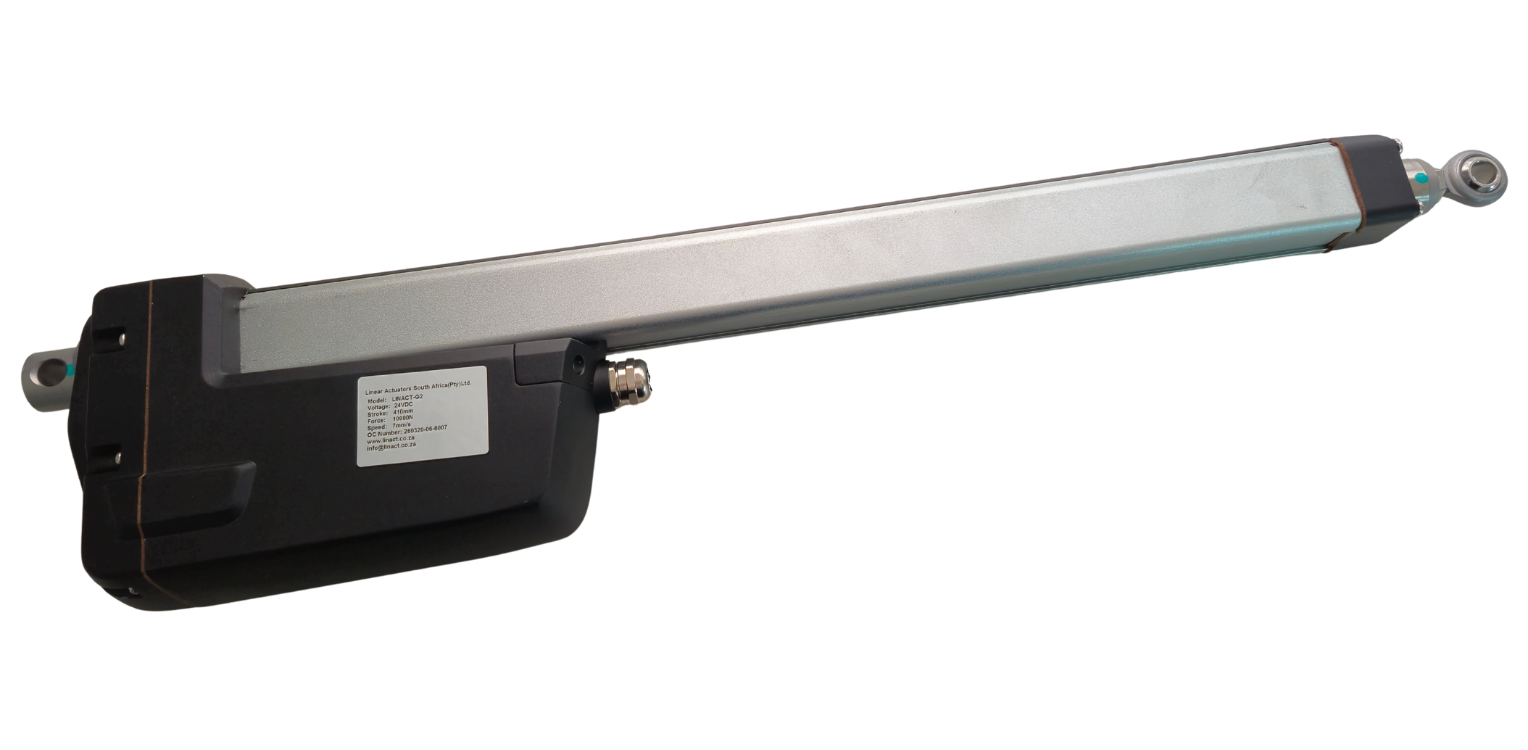

The 410mm Option:
Stroke Length: 410mm
Retracted Length: 700mm
Fully Extended Length: 1110mm

Because heavy machinery bays have strict geometric constraints, a slight 10mm difference in stroke translates to a critical 50mm difference in the retracted mounting space (650mm vs. 700mm). This is why we stock both—to ensure your exact build requirements are met.

Safety First: The LINACT-G2/SK with Hand Control

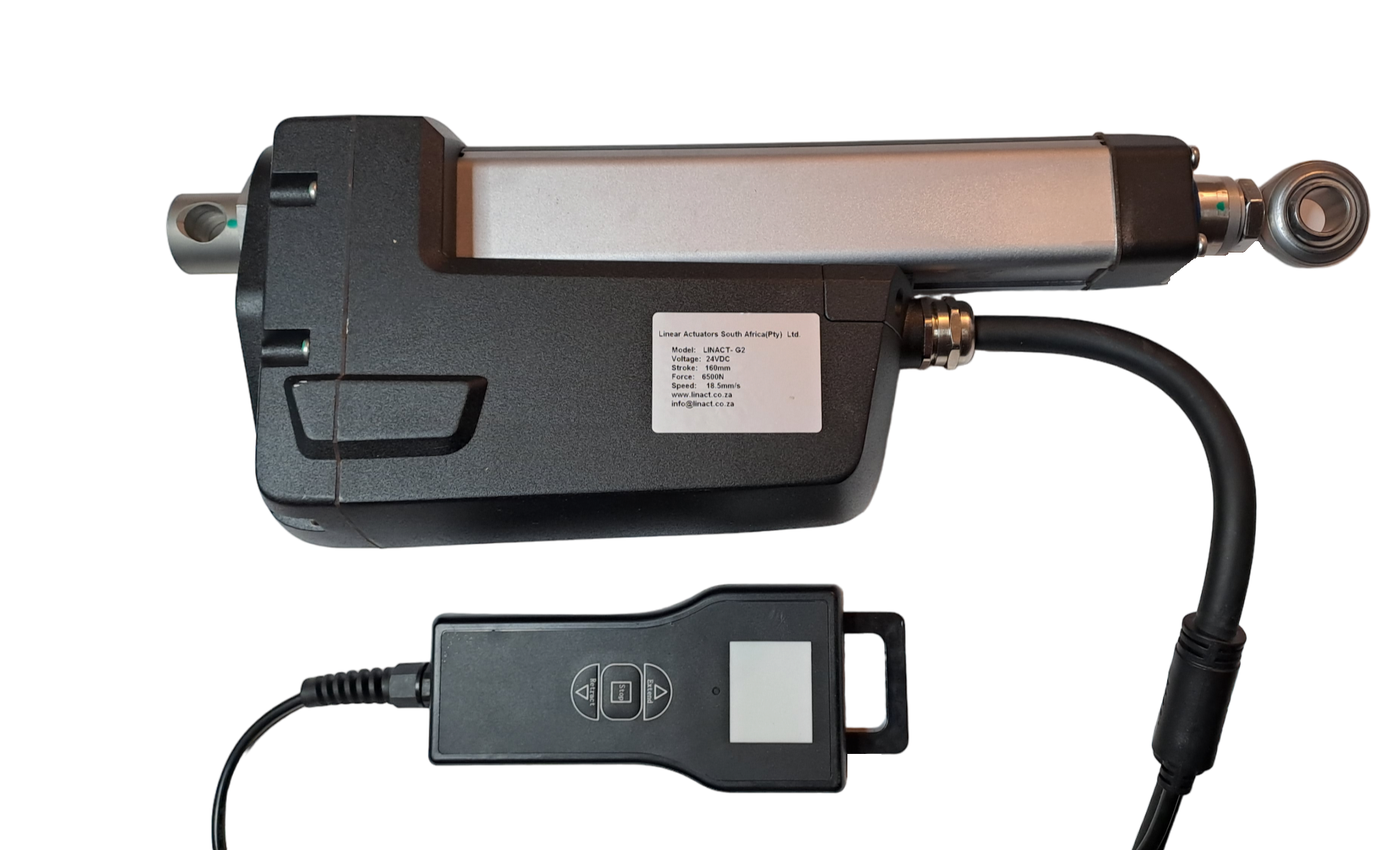

The LINACT-G2/SK variant featuring a wired handset for safe, remote operation.

Opening the hood of an articulated dump truck manually is a severe safety hazard. But even when automated, operators shouldn't have to reach into dangerous pinch points to trigger a lift.

Available on order, the LINACT-G2/SK variant comes complete with a Wired Hand Control. This allows mechanics and operators to step back and safely manage the 3,200N to 12,000N lift force from a secure vantage point.

Furthermore, for ultimate safety, all of these LINACT-G2 units come complete with a Manual Hand Screw. If the vehicle loses total electrical power, the heavy hood can still be safely overridden and lowered.

Custom Strokes for Custom Builds

While our 400mm and 410mm units are ready to ship, the LINACT-G2 is not a one-size-fits-all product. If your farming implement or earthmover requires a specific geometry, custom stroke lengths from 50mm up to 1000mm are available on order.
