TV Lift
A Television-lift, TV-lift for short, or also TV-lifting system, is an electrically powered mechanical system which lifts or moves televisions vertically out of furniture, ceilings or partition walls. The main reason for using such a system is in order to integrate a television into the existing interior design of a room without the television disrupting the overall design appearance.
Compact and quiet. Ideal to conceal screens and monitors. It is easily assembled with just a few screws. Commonly used to keep your television out of sight until it’s needed. Contact us today!
TV-Lift for a Cabinet
Available from Stock
– Subject to prior sale –
LINACT-TL-06-1000
Experience the seamless integration of technology and design with the LINACT-TL-06-1000, our flagship motorised TV lift. Engineered in South Africa for reliability and whisper-quiet operation, this mechanism is the perfect solution for homeowners and custom cabinet makers looking to achieve a truly minimalist aesthetic. With the touch of a button, your 32″ to 70″ television elegantly rises from a cabinet, footboard, or custom enclosure, transforming your room from a living space into an entertainment hub. When not in use, it retracts completely, leaving you with a clean, clutter-free surface. The LINACT-TL-06-1000 is the definitive choice for adding a touch of automated luxury and reclaiming your space.
Cabinet Clearance: Internal dimensions must be calculated using your specific TV. Total required height varies based on TV size and VESA hole placement. We strongly advise against building enclosures before physically measuring the assembled unit.
- Input Voltage: 230Vac
- Load Capacity: 800N (80kg)
- Max Speed: 25mm/s
- TV Size: 32″ – 70″
- Stroke: 1000mm
- Min Install Dimension: 730mm
- Fully Extended Length: 1 730mm
- Duty Cycle: 10% (max 2 min on / 18min off) (Lifting mechanism only, exclude the cabinet)
Click here to download product overview and dimensions
Intellectual Property Notice: All technical specifications and documents remain the exclusive property of Linear Actuators South Africa (Pty) Ltd. These files may not be reproduced or shared without written consent, in accordance with Clause 16 of our Standard Terms & Conditions.
Available from Stock
– Subject to prior sale –

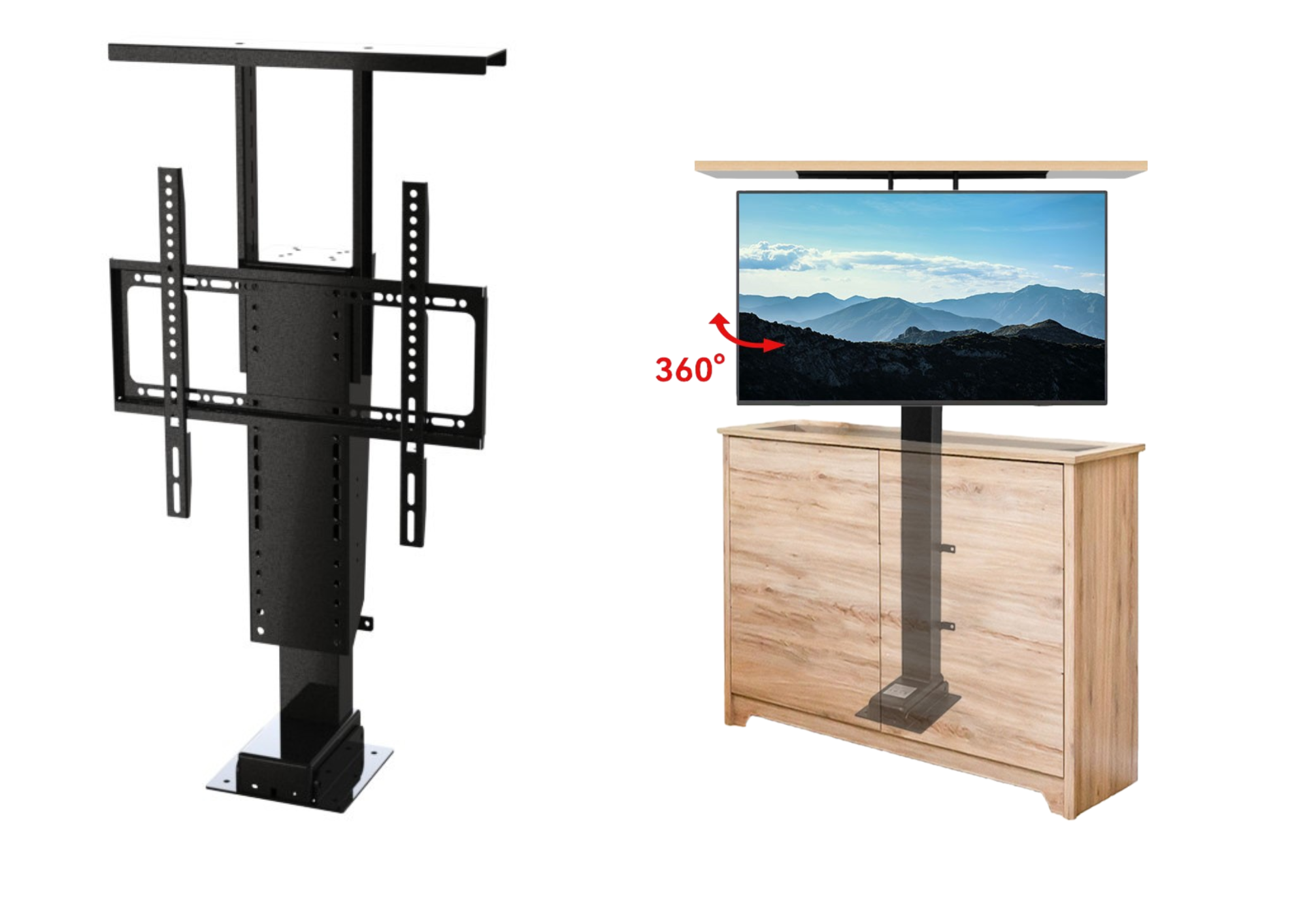

LINACT-TL-06-1000-S
Take your home entertainment to the next level with the unparalleled flexibility of the LINACT-TL-06-1000-S. This model includes all the quiet, motorised lifting capabilities of the standard unit and adds a versatile 360° manual swivel. This game-changing feature is the ultimate solution for Cape Town’s popular open-plan living spaces. Effortlessly turn your screen from the lounge to the dining area or kitchen, ensuring the perfect view from anywhere in the room. Ideal for entertaining guests during a summer braai or keeping an eye on the news while you cook, the LINACT-TL-06-1000-S turns your hidden TV into a complete and dynamic viewing hub for the modern South African home.
Cabinet Clearance: Internal dimensions must be calculated using your specific TV. Total required height varies based on TV size and VESA hole placement. We strongly advise against building enclosures before physically measuring the assembled unit.
- Input Voltage: 230Vac
- Load Capacity: 800N (80kg)
- Max Speed: 25mm/s
- TV Size: 32″ – 70″
- Stroke: 1000mm
- Key Feature: 360° Manual Swivel
- Min Install Dimension: 730mm
- Fully Extended Length: 1 730mm
- Duty Cycle: 10% (max 2 min on / 18min off) (Lifting mechanism only, exclude the cabinet)
Click here to download product overview and dimensions
Intellectual Property Notice: All technical specifications and documents remain the exclusive property of Linear Actuators South Africa (Pty) Ltd. These files may not be reproduced or shared without written consent, in accordance with Clause 16 of our Standard Terms & Conditions.
Ceiling Electric Drop Down TV Bracket
If you need to lower your TV down from a ceiling, then you need a drop-down mechanism. Our Drop down units are universal and fit most TV sizes.
Our drop-down motorized TV-lift model. In seconds, you can lower your television from the ceiling and raise it back to hide in plain sight when it’s not being used. It’s slim dimensions and easy installation makes it a popular choice for homeowners, audio & video installers and innovators to use in their living room, kitchen, offices etc. Contact us today for a free quote.
Available from Stock
– Subject to prior sale –
LINACT-CL-06-1000
TV-Lift for the ceiling –
Drop Down
– Hang From Ceiling –
- Input Voltage: 230Vac
- Load Capacity: 600N (60kg)
- Max Speed: 25mm/s
- TV Size: 32″ – 70″
- Stroke: 1000mm
- Min Install Dimension: 730mm
- Fully Extended Length: 1 730mm
- Duty Cycle: 10% (max 2 min on / 18min off) (Lifting mechanism only, exclude the cabinet)
Click here to download product overview and dimensions
Intellectual Property Notice: All technical specifications and documents remain the exclusive property of Linear Actuators South Africa (Pty) Ltd. These files may not be reproduced or shared without written consent, in accordance with Clause 16 of our Standard Terms & Conditions.
Available on Order
– Estimated Lead Time: T.B.C. –
LINACT-Y-05-50
TV-Lift for the ceiling –
Drop Down
– Into Ceiling Concealed-
- Input Voltage: 230Vac
- Load Capacity: 500N (50kg)
- Max Speed: 22mm/s
- Stroke: 50″ / 1 270mm
- TV Size: 30″ – 95″
- Minimum Height: 1587mm
- Fully Extended Length: 2857mm
- Duty Cycle: 10% (max 2 min on / 18min off)
Click here to view product overview
Intellectual Property Notice: All technical specifications and documents remain the exclusive property of Linear Actuators South Africa (Pty) Ltd. These files may not be reproduced or shared without written consent, in accordance with Clause 16 of our Standard Terms & Conditions.
Ceiling Mount Electric Flip Down TV Bracket
Maximize your living space and enjoy the ultimate in-home entertainment experience with our Ceiling Mount Electric Flip Down TV Bracket. This innovative, motorized TV mount allows you to effortlessly hide your television when not in use, and with the simple push of a button, your TV descends smoothly from the ceiling for perfect viewing.
Transform your home entertainment setup with the Ceiling Mount Electric Flip Down TV Bracket—perfect for those who value style, convenience, and functionality. Whether you’re relaxing at home or impressing guests, this innovative TV mount delivers an unparalleled viewing experience. Contact us today for a free quote.
Available from Stock
– Subject to prior sale –
LINACT-CL32-70
Ceiling Mount Electric
Flip Down TV Bracket
- Input Voltage: 230Vac
- Load Capacity: 50kg
- TV Size: 32″ – 70″
- Duty Cycle: 10% (max 2 min on / 18min off)
- Include Remote
Click here to view product overview and dimensions
Intellectual Property Notice: All technical specifications and documents remain the exclusive property of Linear Actuators South Africa (Pty) Ltd. These files may not be reproduced or shared without written consent, in accordance with Clause 16 of our Standard Terms & Conditions.
Available from Stock
– Subject to prior sale –
LINACT-CL50-85
Ceiling Mount Electric
Flip Down TV Bracket
- Input Voltage: 230Vac
- Load Capacity: 80kg
- TV Size: 50″ – 85″
- Duty Cycle: 10% (max 2 min on / 18min off)
- Include Remote
Click here to view product overview and dimensions
Intellectual Property Notice: All technical specifications and documents remain the exclusive property of Linear Actuators South Africa (Pty) Ltd. These files may not be reproduced or shared without written consent, in accordance with Clause 16 of our Standard Terms & Conditions.
TV-Lift for Boardroom Display
Transform your boardroom with our New to the Range TV-Lift, for the bigger than usual display sizes, designed to elevate a 100″ television with smooth and silent precision. Whether you want to raise the TV out of a custom cabinet and conceal it when not in use, our lift provides a seamless solution that optimizes your space and enhances your meetings. Its modern design blends effortlessly into any boardroom, offering a discreet yet sophisticated way to present and video conferencing. Elevate your presentations and create a more dynamic, professional environment with this practical and stylish addition to your boardroom.
Available on Order
– Estimated Lead Time: 2-3 weeks from payment
LINACT-DTL-06-1300
TV-Lift for a Boardroom
- Input Voltage: 230Vac
- Load Capacity: 1 000N (100kg)
- Stroke: 1300mm
- TV Size: 100″
- Min Install Dimension: 880mm
- Fully Extended Length: 2 180mm
- Duty Cycle: 10% (max 2 min on / 18min off) (Lifting mechanism only, exclude the TV)
Click here to download product overview and dimensions
Cabinet Clearance: Internal dimensions must be calculated using your specific TV. Total required height varies based on TV size and VESA hole placement. We strongly advise against building enclosures before physically measuring the assembled unit.
