The Working-Class Hero: Introducing the Robust LINACT-33P Range (Up to 7,000N)

LINACT-33P – Designed to Endure. Engineered to Perform.

Industrial-grade endurance with versatile force options from 2,000N to 7,000N.

When most engineers and builders start a serious automation project, they think they have only two choices for linear motion:

• Compact-Duty: Agile, plastic-geared units perfect for opening a small hatch or vent, but not designed for enduring serious industrial or agricultural loads.
• Ultra-Heavy-Duty: Indestructible, complex servo-controlled industrial muscle that delivers extreme force but often introduces unnecessary complexity into a system that doesn't demand it.

At Linear Actuators South Africa, we know the reality of the South African market. You need muscle, and you need reliability to withstand Cape salt spray or Karoo dust, and you need it on a workable scale.

Enter the LINACT-33P range: The definitive Working-Class Hero. The heavy-duty upgrade that delivers Compromise-Free versatile force, ranging from a high-speed 2,000N up to a forceful 7,000N (700kg) punch.

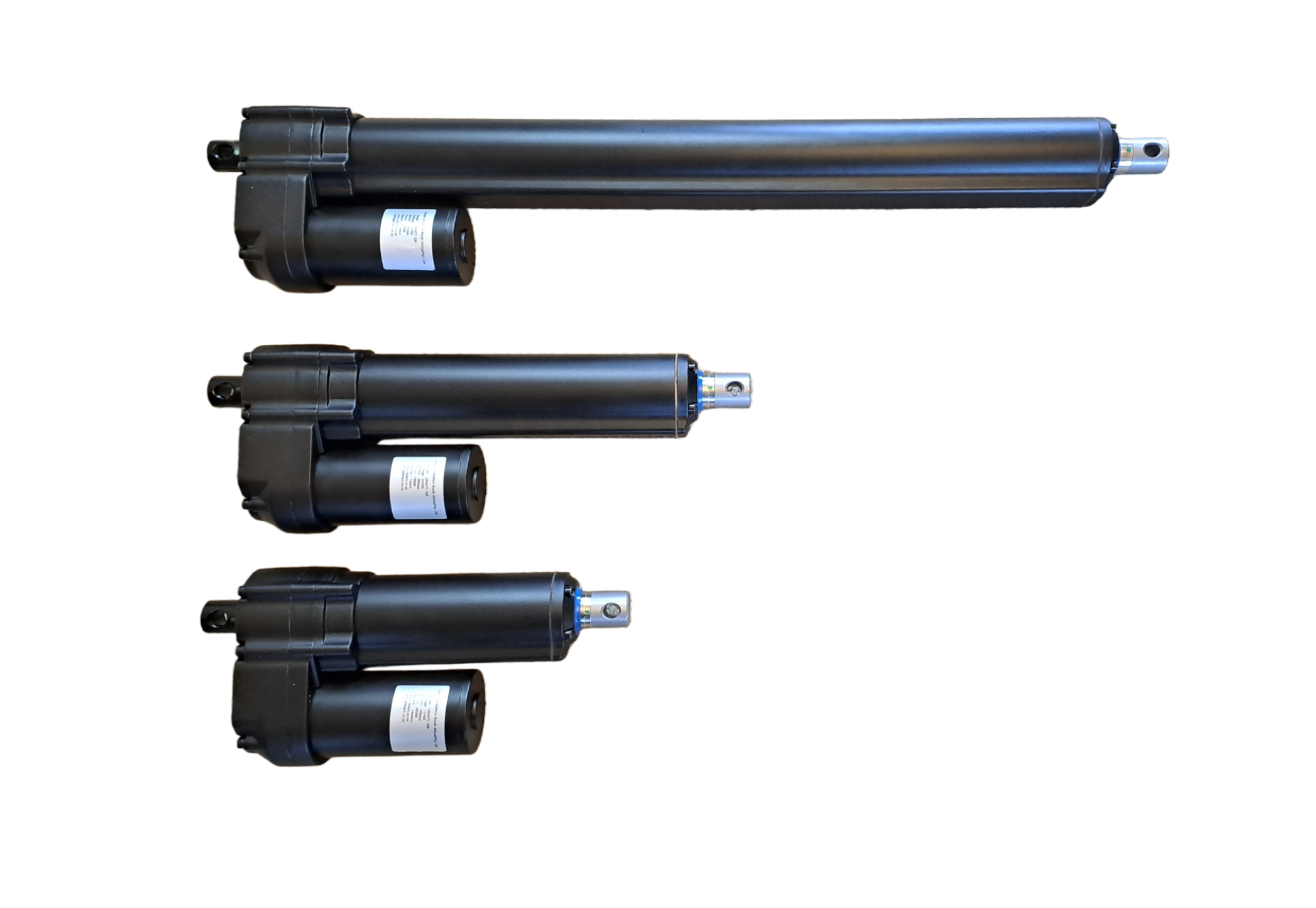

We position the LINACT-33P series as the robust middle ground. Think of it as the actuator that brings true industrial-grade strength into your system design conversation.

The Anatomy of an Industrial Punch (Why the LINACT-33P is Different)

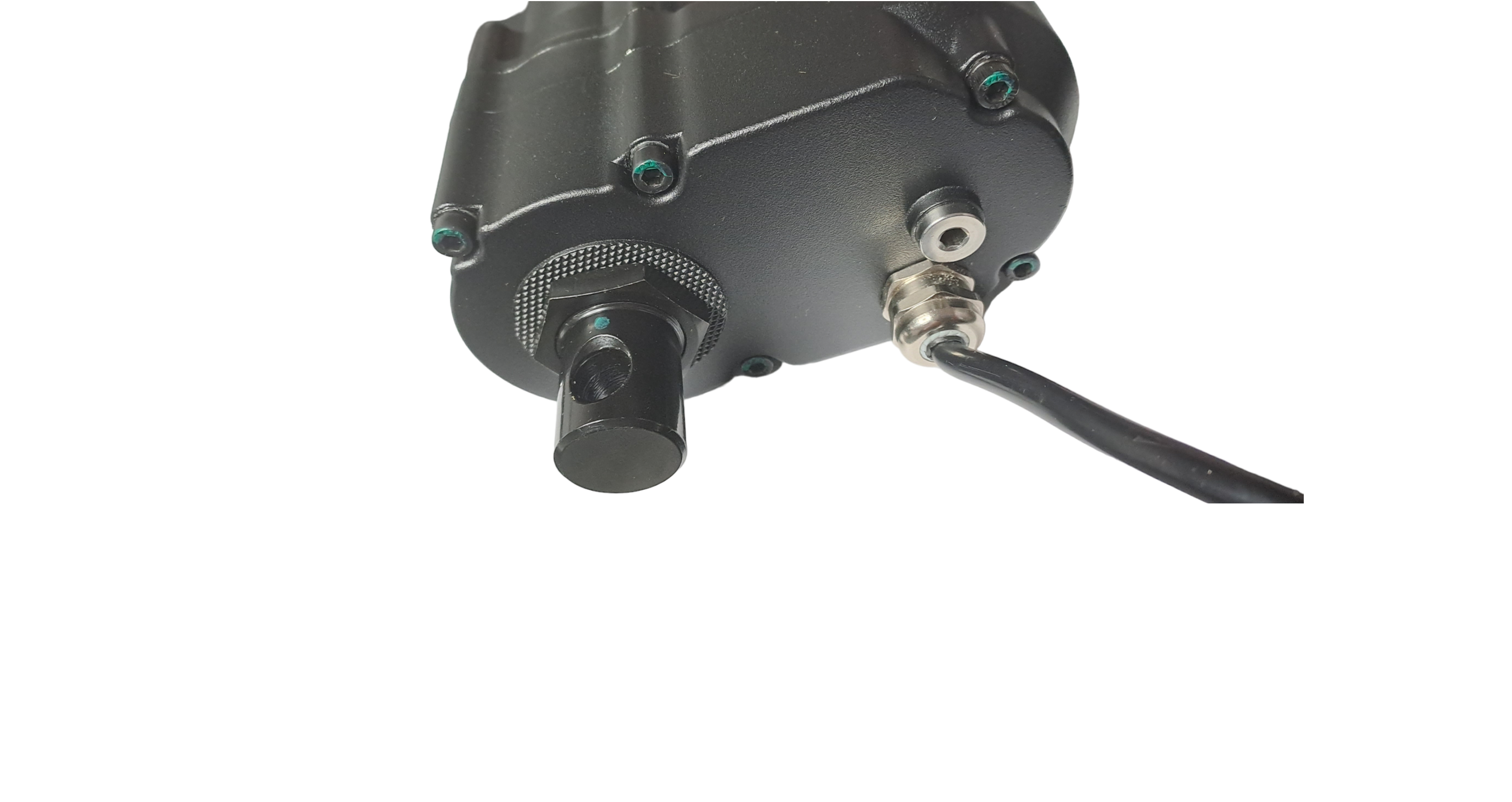

Robust, industrial-grade engineering in the details. The LINACT-33P features a heavy-duty gearbox and professional, IP65-rated cable connectors.

What allows the LINACT-33P to enduringly deliver versatile high-force outputs between 2,000N and 7,000N across a wide 12-48Vdc range? It isn’t just about size; it's about uncompromising components. While its footprint remains compact, the LINACT-33P is Designed to Endure:

• Force & Speed Versatility: The series provides options tailored to your application. Choose higher speed with 2,000N of force, or maximum power pushing up to a forceful 7,000N, ensuring your system performs exactly as needed without compromising on durability.
• Robust Gearing: A high-strength, heavy-duty gear set (no compromises, 100% metal!) allows for continuous operation under demanding loads.
• Stainless Steel Rod: It features a thick, 30mm stainless steel inner rod engineered to resist side-loading and severe corrosion.
• Metal Outer Housing: The entire unit is built for demanding environments, preventing dust and moisture ingress, giving you the durable build quality your project deserves.

The Critical Tech Tip: Measuring for Your LINACT-33P Build

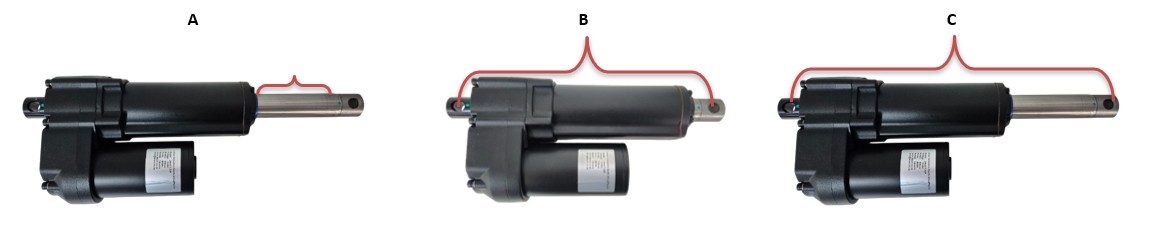

This visual makes it clear. A LINACT-33P unit measuring 300mm in total Installation Length might only provide a 100mm Stroke, which is the actual distance the inner rod travels. Always measure your available space first!

⚠️ PRO TIP FROM THE LINACT TEAM:

Before you finalize your order for a heavy-duty actuator like the LINACT-33P, you must understand the difference between Stroke and Installation Length. For heavy-duty models like the LINACT-33P, the actuator body is significantly larger. Need help with the calculations? Our team is ready to assist.

Feature Spotlight: Power Out? Manual Override.

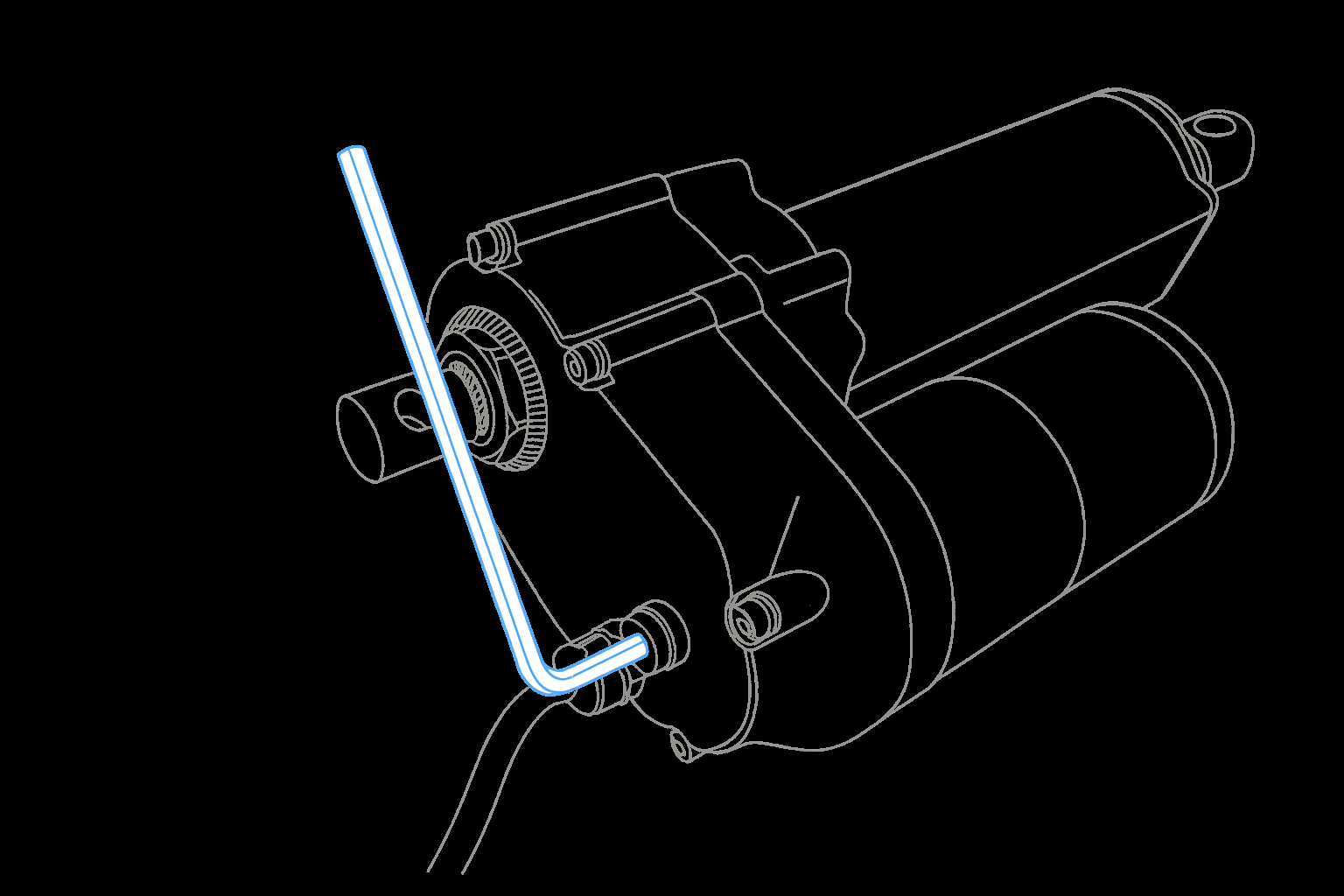

Power out? No problem. The LINACT-33P’s Manual Override feature gives you total control, even in an emergency.

What happens to your system when the power fails? For many actuators, the answer is "system failure."

The LINACT-33P is Engineered to Perform in demanding and safety-critical jobs. One of its standout, high-value features is an integrated Manual Override. This allows you to extend or retract the actuator manually, no power required.

This is a must-have feature for industrial machinery, medical equipment, solar panel arrays, or any safety-critical system where downtime or power loss isn’t an option.

Feedback and Precision: Smart Motion Starts Here

A heavy-duty actuator is only useful if your system knows exactly what it is doing. The LINACT-33P range offers advanced feedback options to seamlessly integrate with your PLCs or control systems:

For Integration (Limit Signals)

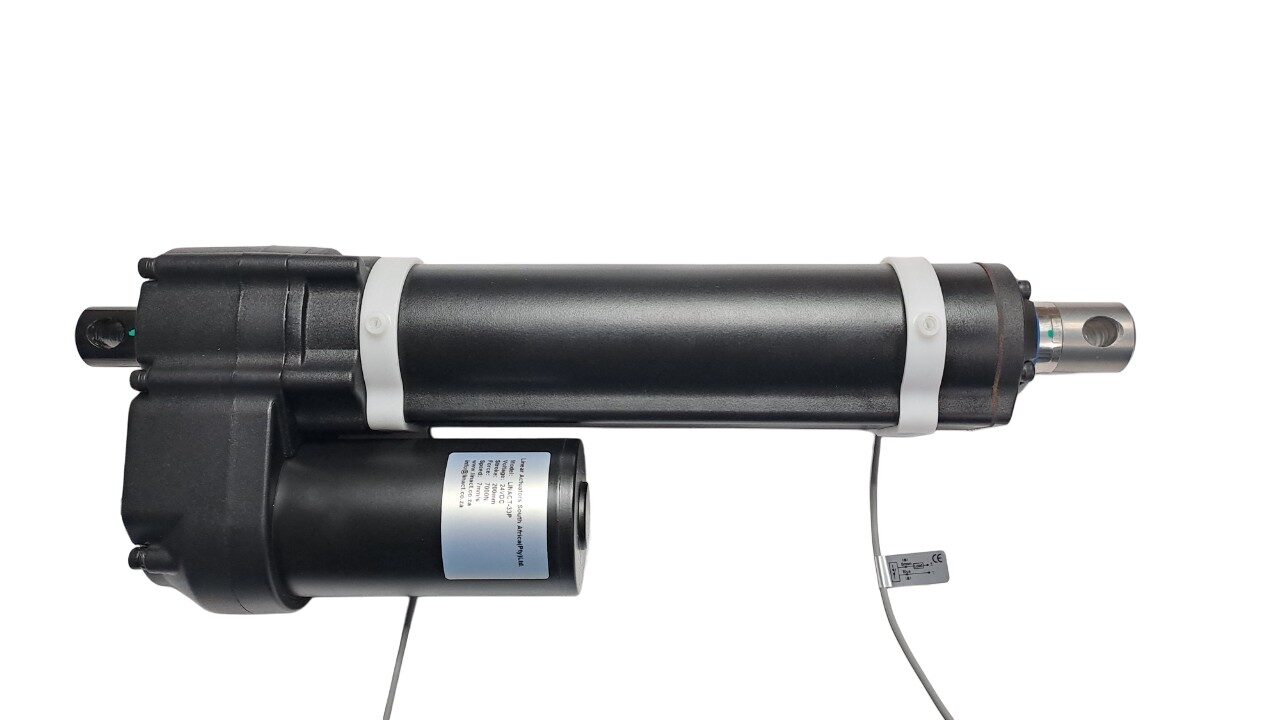

Position Awareness. Limit Signals/Reed Switches localized on the LINACT-33P stroke provide simple, rugged feedback on whether the actuator is fully extended or retracted.

We offer reliable magnetic reed switches that give your system reliable position awareness, signalling your controller the moment the factory gate or automated window is fully open or closed.

For Teamwork (Hall Sensors and Synchronized Sets)

Synchronized Performance. A 24Vdc heavy-duty LINACT-33P synchronized pair, ready for parallel industrial lifting.

If your project requires multiple actuators to move in perfect synchronization (e.g., dual heavy marine hatches or complex agricultural machinery), the LINACT-33P is available with Hall Sensor feedback.

Crucially, we offer complete synchronized sets of the LINACT-33P in 24Vdc, available in sets of 2 and 4 units. This provides a rugged, engineering-grade synchronized parallel lift without the need for complex, high-end servo systems.

Not All Motion is Created Equal.

The durability and precise control options of the LINACT-33P make it the optimal heavy-duty solution for challenging applications across numerous sectors:

• Industrial Automation: Actuating factory equipment slides, factory gates, or conveyor diverter arms (signaling PLCs at end of travel).
• Agricultural Systems: Detects full extension/retraction on feed or large ventilation window setups in chicken sheds.
• Heavy-Duty Vehicle Modifications: Automating heavy industrial hatches, steps, or vehicle-mounted equipment.
• Solar Panel Tilting: Driving large commercial solar panel arrays with precise control, with integrated manual override for safety during maintenance or emergencies.

Let's Spec Your Solution.

Ready to move. The LINACT-33P: Heavy-duty power engineered for power, backed locally by Linear Actuators South Africa.

If your next design requires Compromise-Free endurance and high-performance force options up to 7,000N, the LINACT-J Range (2,000N) isn’t enough. You need the heavy-duty upgrade.

Don't settle for "fragile" or overspend on extreme complexity. Talk to Linear Actuators South Africa about getting the Working-Class Hero that smacks a forceful 7,000N punch.
